Product code: A4D1-90210
Metal lifting bed frame 90x210 SIDE 24 slats
Wybierz wariant produktu:
Individual variants may differ in price
Ask about the product
Administratorem danych osobowych jest KAVON Przemysław Nowak. Przetwarzamy je w celu przesłania odpowiedzi na zapytanie. Więcej informacji dotyczących przetwarzania danych osobowych znajduje się w polityce prywatności.
Delivery time varies by destination country (2–5 business days).
Shipping cost for the selected product
The shipping cost applies to this product (in the selected variant - if applicable). It may change after adding other products to the cart.
Description
Technical data
Delivery costs

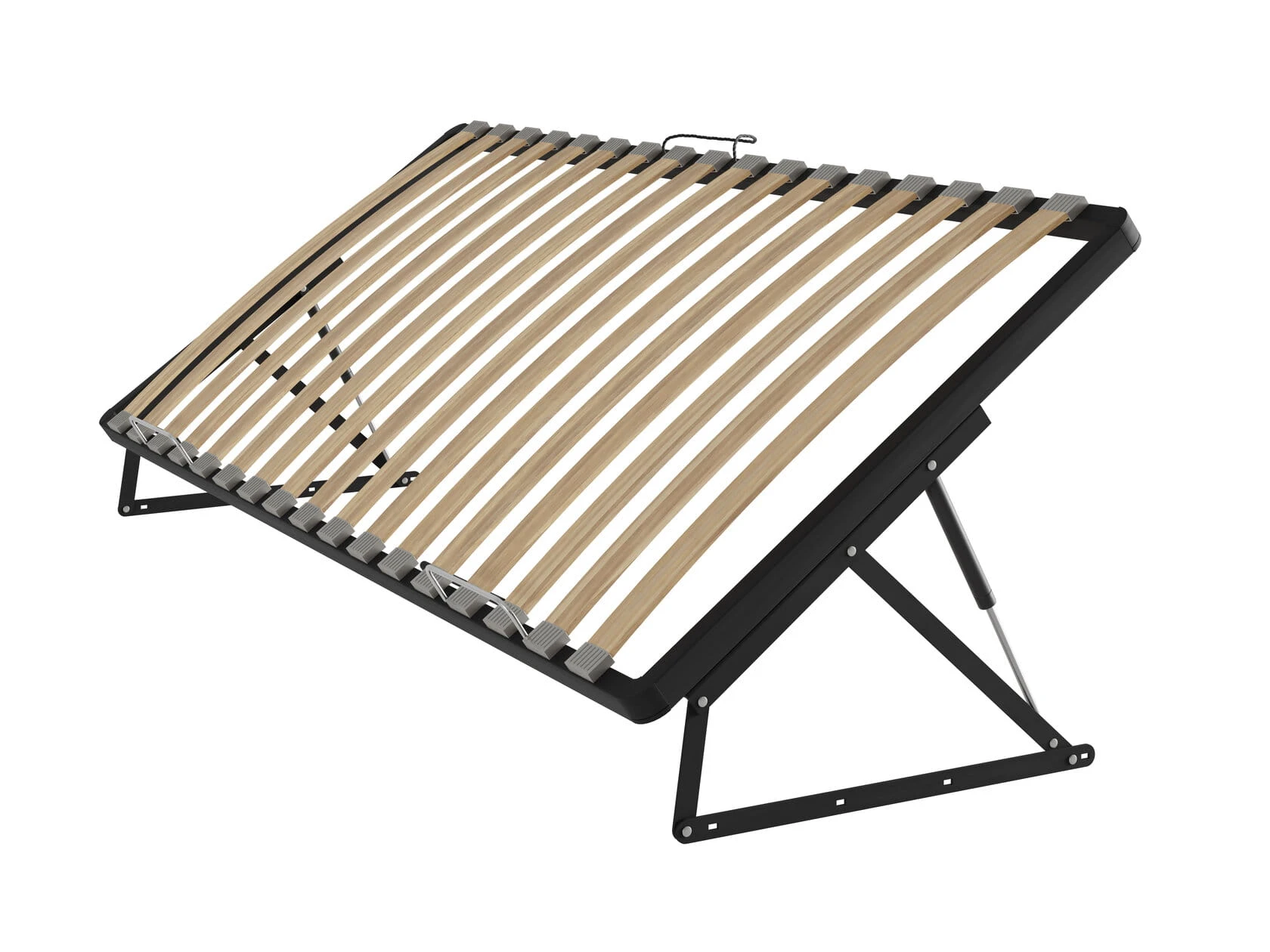

Bed frame 90x210 SIDE with 24 slats
Made of a thick profile with dimensions of 40x30mm, the frame is extremely solid and resistant to damage. Mechanisms, which have been produced for years in a Polish factory, guarantee reliability and convenience of use.
Product on individual order - no possibility of return.

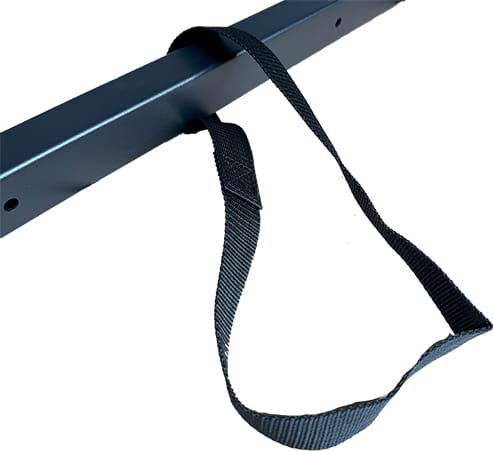

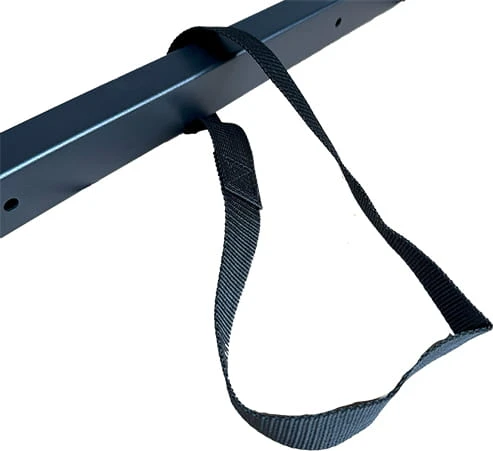

In the case of side frames with non-standard lengths, i.e., 190cm, 210cm, and 220cm, the opening handle is changed. No fixed string permanently mounted in the profile. We include a string in the set which should be attached to the side profile yourself before screwing the frame in the appropriate place.
Technical data:
Frame width: 890mm
Frame length: 2104mm
Slats: 24 spring slats - birch
Distance between slats: about 2.5cm

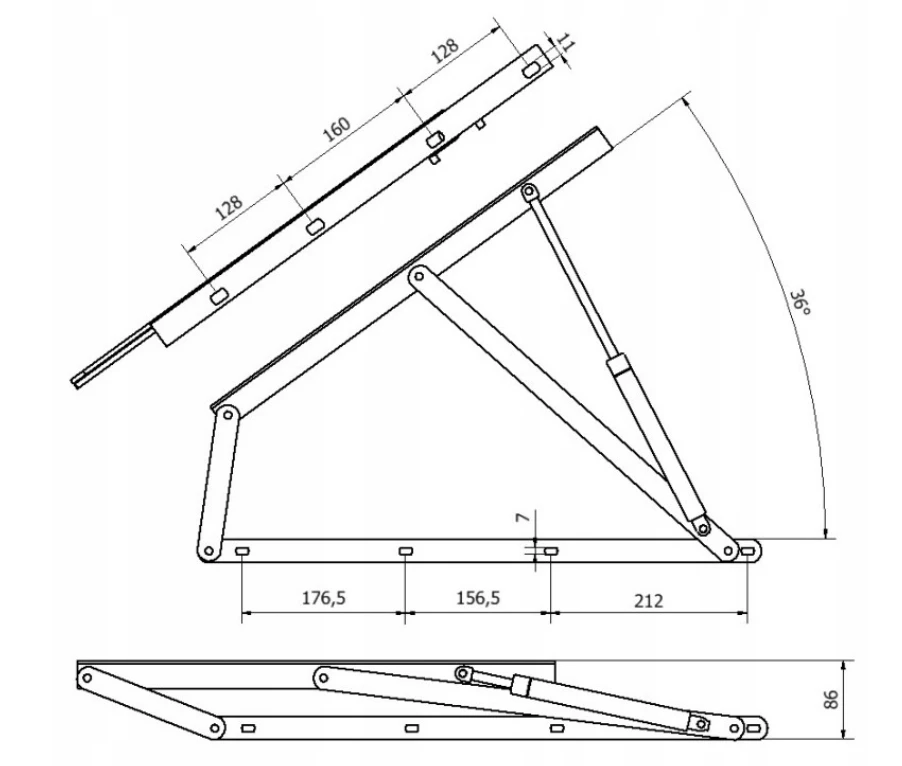

Mechanism dimensions: technical drawings of the lifting mechanism in the product photo gallery
Packaging: each frame is packed in a separate carton with dimensions of about 210x30x13cm
Assembly: the frame is for self-assembly, please remember to mount the gas springs with the THICKER part upwards
Box for self-making (not included):
Inner dimension of the box (recommended length clearance): 90 x 212cm
Box height: minimum 20cm
Assembly in the box: each customer must individually choose the height at which they will mount the mechanisms, it all depends on the thickness of the mattress and individual needs
JEŻELI NIE MASZ POJĘCIA JAK WYKONAĆ SKRZYNIĘ ŁÓŻKA LUB MASZ JAKIEŚ WĄTPLIWOŚCI ZACHĘCAMY SIĘ DO ZAPOZNANIA SIĘ Z NASZYM ARTYKUŁEM:
>>>How to design a box for a metal frame with ST mechanism?<<<
Selection of gas springs:
Everything depends on the thickness and weight of the mattress that will ultimately be on the frame. We would like to point out that it is not always the case that the stronger the actuator, the "better". In the case of side opening, we recommend 350N actuators. In case of doubt, please contact us by email or phone to help choose the actuator - its weight must be known.
